Vegetables and Fruit Processing Line

Capacity: 50kg/h -300kg/h and custom service.

Process: <1>. Washing -- Drying -- Sorting--Packaging

<2>. Washing and peeling--Drying--Cutting --Packaging--Freezing

Final Products: strips, chips, dices.

Description

Brief introduction of vegetables washing drying and sorting and cutting machine line for orange, tomato, apple, lemon, potato, taro, etc

Vegetable and fruit procesing machine is suitable for handling those root vegetables, such as potato, carrot, radish, turnip, radish, cassava, beetroot, taro, ginger, etc. The output capacity is from 50kg/h to 1000kg/h aoccording to your different needs. It plays an important rule of food machinery industry. A good choice for those vegetable distributor, central kitchen, vegetable&fruit processing factory, etc.

Video of vegetable and fruit cleaning, drying and cutting line

Vegetable and fruit production line of work flow:

Work flow of root vegetables and fruit

<1>. Washing and peeling--Sorting and conveyor--Dryer--Sorting--Packing(Suitable for simple processing of fruits and vegetables, such as vegetable sellers, farms, fruit and vegetable processing plants, supermarkets)
<2>. Washing and peeling--drying--cutting--packaging--freezing(Suitable for deep processing of fruits and vegetables, such as pickle processing plants, central kitchens, restaurants)

Work flow of leafy vegetables

<1>. Washing--Drying--Picking--Packaging--Freezing

<2>. Washing--Cutting--Drying--Picking--Packaging--Freezing

Introduction of Washing Machine

The fruit vegetable washing machine adopt air bubble washing. Applies to vegetables, fruits, aquatic products and other granular, leafy, root cleaning products, immersion. We can customize machine according your requirements. It is made of SUS304. Good Quality and easy to operate. And the clean running speed stepless adjustable, users can be set according to different cleaning content.

Working Principle of bubble fruit vegetable washing machine

1. When fruits entry into the water tank, they will be fully scattered, rolling, cleaning and transferring in under of high pressure water and strong flow.
2. The cleaned vegetable and fruit will be sent out by net belt and spray cleaning.

Advantages of vegetable and fruit cleaning and drying line

1. Equipped with a bubble generator to make the objects roll over

2. High pressure air bubble and spraying water can wash off dirt, sands and other residues

3. Equipped with VFD to better adjust the belt speed

4. Equipped with separating filter tank and water recycling system

5. Equipped with spraying section with clean water for twice washing

6. The objects are automatically conveyored to spraying section by the conveyor mesh belt

7. Cut it into several shapes, strips, chips, dices etc.

Application

Raw material: fruit and vegetables
1. It is suitable for cutting leafy vegetable, such as: cabbage, spinach, pepper, etc.
Root vegetable: potato, taro, onion, sweet potato, eggplant, melon etc.
Fruit: apples, strawberries, jujubes, blueberry another fruit cleaning.
2. Small food processing plant, snack food factory, fruit processing plant.
3. Hotels, food & Beverage factory, farms, restaurant.

Performance Parameter
Machine Model Dimension Weight Voltage Power Capacity
Elevator  YZ-SD-150 3000*800*900mm 500kg 380V 6.6kw 1000kg/h
Automatic Bubble Washing Machine YZ-QPQX-4000 4000*1200*1300mm 700kg 380V 8.3kw 1000kg/h
Brush Roller Cleaning Machine YZ-SXQX-3000  3500*1100*1100mm 600kg 380V 5.25kw 1000kg/h
Air Cooling Drying Machine YZ-FGX-4000 4000*1200*1300mm 700kg 380V 6.6kw 1000kg/h
Hand Picking Machine YZ-TJX-5000 3000*800*900mm 200kg 380V 5.3kw 1000kg/h
Sorting Machine YZ-FXJ-6000 2600*1000*1000mm 700kg 380V 8.4kw 1000kg/h

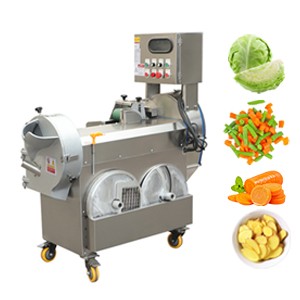

cutting /slicing/dicing mahcine  YZ-QCJ-3000 710*660*1085mm 300kg 380V 0.75kw 1000kg/h
Packaging Machine YZ-BZJ-6000 3000*800*900mm 700kg 380V 8.6kw 1000kg/h

Tips: machine size, configuration and capacity etc can be customized according to your special requirements.This bubble washing machine is widely used with other machines to combine one whole processing line, like vegetable cutting machine, brush polishing machine and air drying machine.
