Basket Washing Machine

Advantage of high-pressure water speay basket washing machine

1. Cleaning height and width are adjustable.
2. The cleaning nozzle using stereo square installation structure, it can use cold, hot water wash to ensure clean more thoroughly.
3. Water recycling for cost saving.
4. Unique design can satisfy the baskets of different sizes cleaned on one machine.
5. Steam heating or electric heating can be chosen.
6. The main parts of the shell are detachable, it is convenient to repair.
7. Doors of the washing machine are waterproof to prevent the overflow of water.

Description

Description

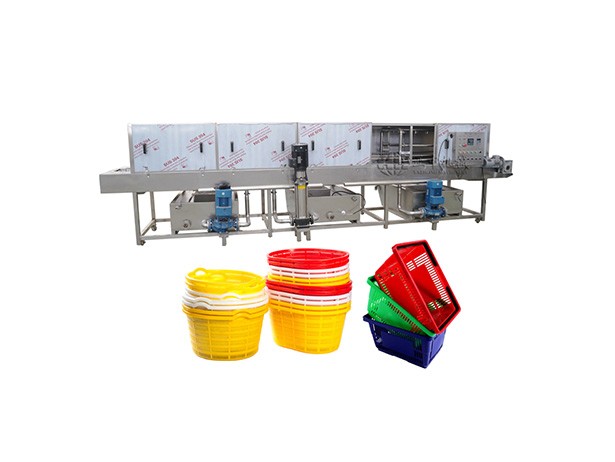

High-pressure water spray potato plastic basket washing machine is uesd to washing and cleaning the potato contained plastic basket. It adopts high-pressure spray water to clean plastic basket or box using. The palstic basket is placed on the transmission belt. The baskets are sprayed and washed fron the top, bottom, left and right directions. The water tank is equipped with two filtering devices to clean the dirt at any time. The water tank is equipped with a separe drain valve and a pipe.

Video of basket quick washing machine

Working Principle:

This multifunctional bubble washing machine works through high pressure waterflow and water bubbles to impact and scrub the surface of the cleaned objects. Then, there are three ways to clean vegetable and fruit: bubble tumbling, surfing and spraying to clean vegetables, high washing rate and no damage to raw materials. Finally, objects will be cleaned easily.

Work details of high pressure basket cleaning machine:

1. Adopt frequency conversion motor to meet the different requirements of cleaning production.

2. The water tank adopts the horizontal stainless steel centrifugal pump circulation spraying clean.

3. The cleaning nozzle using stereo square installation structure, it can use cold, hot water wash to ensure clean more thoroughly.

4. There are two filter devices in the water tank, so it is easy to clean up the dirt at any time.

5. There is a water spraying system in order to achieve the ideal cleaning effect.

basket high pressure washing machine

6. Stainless steel multi-stage pump to ensure supply pressure;

7. Unique track plus blocking hook design to make the box or basket to run more smoothly.

8. The main parts of the shell are detachable, it is convenient to repair.

9. The equipment is equipped with temperature sensor to monitor the temperature of the water in the water tank to ensure the optimal cleaning effect

10. The whole machine is divided into three parts: each part has a separate water tank and water spraying system suitable for cleaning large-volume baskets or boxes. Some clean water can be recycled and dirty water is discharged from the drain(four or five section washing machine can be customized according to requirements)

11. Equipped with box induction system.

basket washing machine price

Application of High-pressure water spray basket cleaning machine

High-Pressure Water Spray Basket Cleaning Machine has a wide range of applications. It is mainly used in the meat processing industry, catering industry, poultry slaughterhouse, aquaculture industry, large-scale supermarkets, etc.. It is suitable for various types of swina baskets, plastic baskets, stainless steel plates, plastic plates, frozen plates and food dishes., cleaning of food molds. It can also be used to wash a very dirty chocolate tray, hardware industry can be used for cleaning processing parts.

According to the customer’s requirements and the shape of different baskets, we can make different equipment plans according to different requirements, so as to achieve the best cleaning effect for the product.

Performance Parameter

Parameters of basket washing machine

Item

YZQXJ-6000

YZQXJ-7500

YZQXJ-9000

6000mm*1700mm*1780mm

7500mm*1700mm*1780mm

9000mm*1700mm*1780mm

Capacity

300-500pcs/h

500-800pcs/h

800-1000pcs/h

Power(steam heating)

19.5KW

27KW

35KW

Machine plate material

SUS304

Crate dimension

According to requirements

Running Speed

Frequency Converted

Water Consumption

Circulating Water

Steam Consumption

≤80KG/H

Power supply

380V/50HZ (or customized)

Heating method

Steam/electric heating

Water supply pressure

0.4MPa

Water consumption

0.5m3/water tank

Steam pressure

0.6MPa

Washing height

300-1000mm
